65m ladder lift truck work range can reach 65m, Equivalent to 21 floors high building, whole imported from Korea ladder boom ensuring product quality, max. load cargo weight 400KG.
Feature
The trailing ladder truck is mainly used for project leasing, waterproof material upstairs, moving companies, cement sand and stone handling, building materials upstairs, construction waste transportation, ship repair, road and bridge maintenance, etc.
Product highlights:
◆ Automatic interlocking of up and down vehicles
Interlocking up and down to prevent the risk of failure
◆ Emergency electric hydraulic pump
If the chassis motor or main hydraulic pump fails,
◆ Emergency stop
For emergency stop operation
◆ Vehicle level
Can detect the lateral and longitudinal tilt state of the entire vehicle in both directions
◆ Engine ignition shutdown
The ignition and fire extinguishing control of the engine can be achieved through the turret and remote control
◆ Compound action
In the process of performing stretching/contraction, amplitude rise/fall, turntable rotation and work bucket rotation, one group or another group of actions can be moved freely.
◆ Remote control (wireless)
Can work remotely and wirelessly in a wide range
Parameter:
36M Trailing ladder truck | |
·Dimensional parameters | |
Total length | 6510mm |
Overall width | 2200mm |
Total height | 2913mm |
Quality parameters | |
Total mass | 2800kg |
Main performance parameters | |
maximum Working height | 36m |
Work Platform Rated load | 300kg |
Horizontal outriggers | Manual |
Vertical legs | Hydraulic Control |
Driving parameters | |
Highest Travel speed | 60km/h |
Minimum Ground Clearance | 190mm |
Approach Angle Departure angle | 14/10 |
Chassis | |
Gasoline Engine | Honda |
tank | Honda |
Motor power | 15KW |
Work Pressure | 16MPa |
tire | 235/75R15 |
Braking system | Impact hydraulic brake |
damping | Torque shaft |

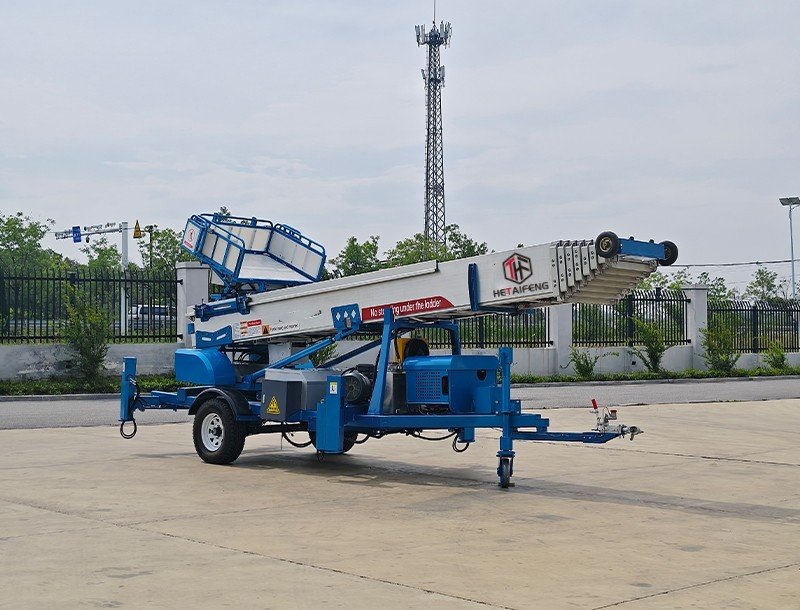

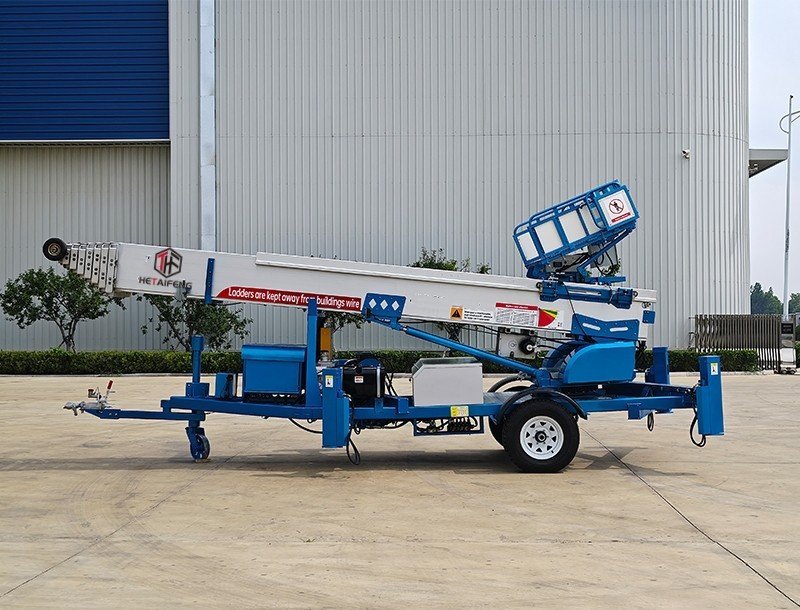

PHOTOS
