Hetaifeng HGL20-4M crawler hydraulic concrete placing boom is a new high-efficiency mobile concrete pouring equipment, designed to expand the pouring range and improve construction mechanization. It works perfectly with concrete pumps to extend conveying distance and improve efficiency.
This machine features a 4-section M-type boom, 360° continuous rotation, 19.9m placing height, stable outriggers, and compact structure. It adopts hydraulic control, wireless remote operation, and crawler chassis for strong off-road passability, suitable for narrow and complex sites.
With reliable welding structure, easy cleaning pipeline, and durable hydraulic system, it is widely used in wall pouring, floor construction, bridge projects, and narrow site construction, effectively reducing labor intensity and improving overall efficiency.
The Crawler hydraulic concrete placing boom is a new product designed to expand the scope of concrete pouring and improve the mechanization level of pumping construction. As a supporting equipment for concrete pumps, it increases the range of concrete pumping by connecting with concrete pumps; at the same time, it plays an important role in improving construction efficiency and reducing labor intensity by effectively solving the problem of material distribution in wall pouring. This concrete placing boom is reasonably designed, with stable and reliable structure, simple and flexible operation of the whole machine, all-round and arm-type distribution structure, high efficiency and energy saving characteristics, and economical and practical features.

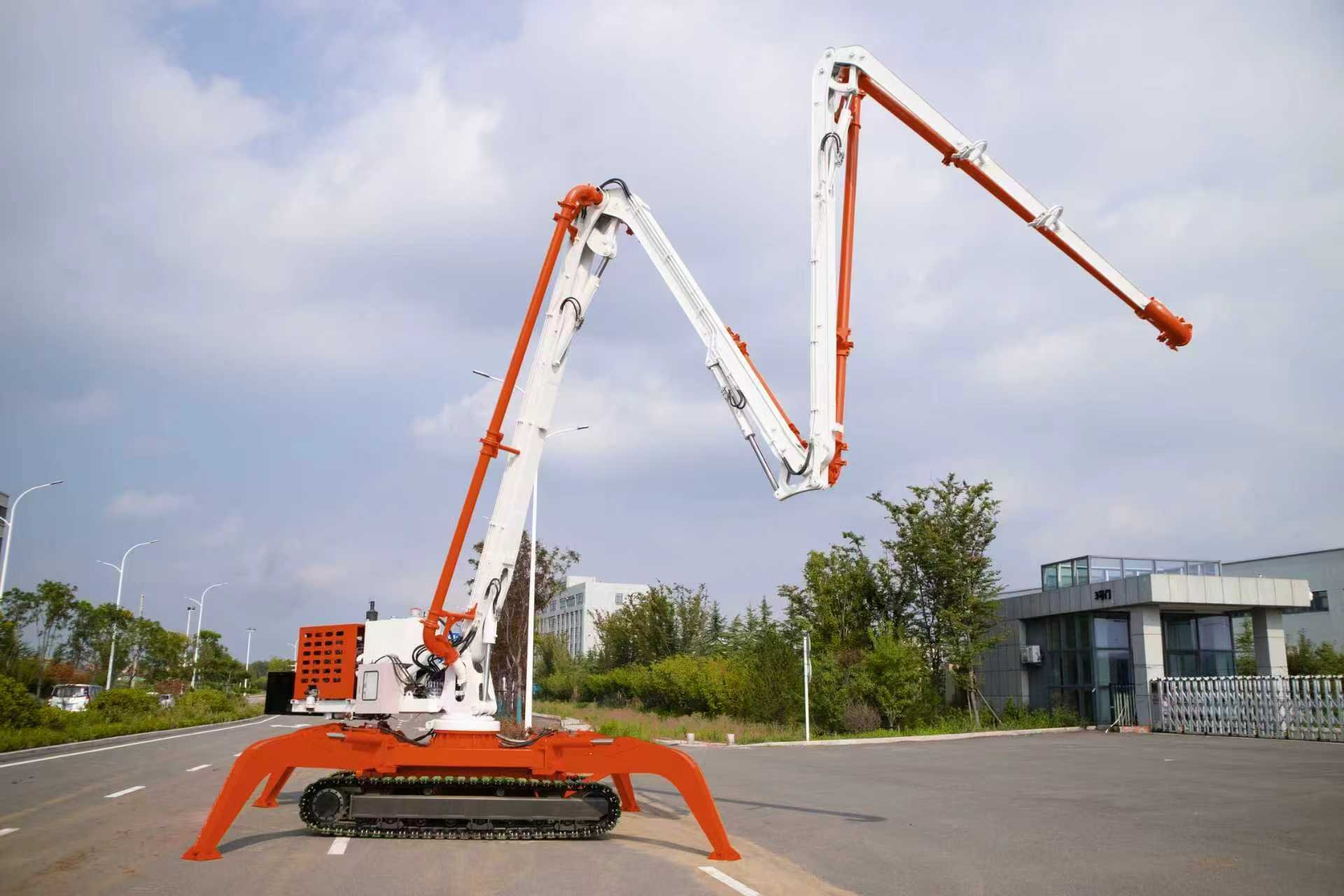

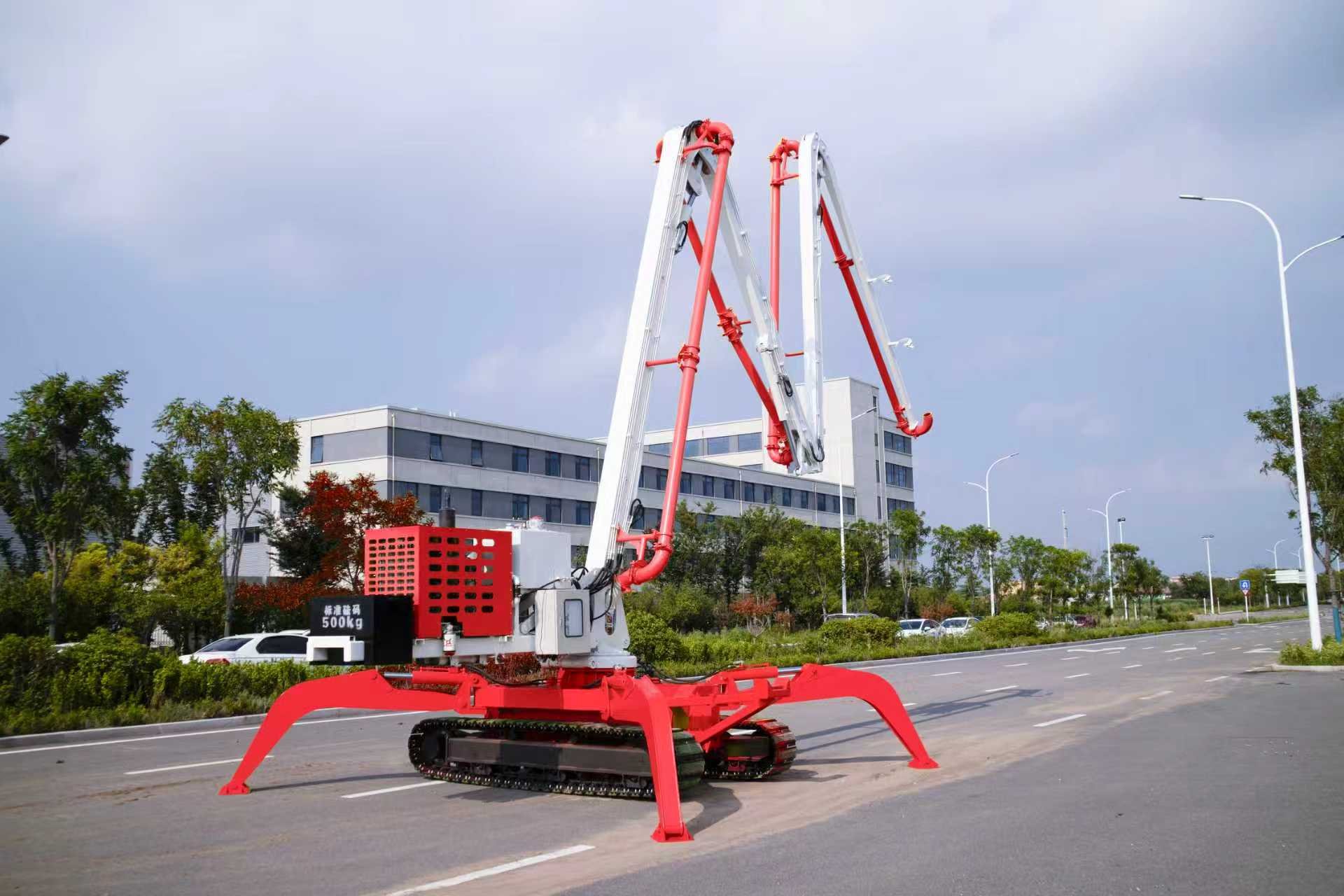

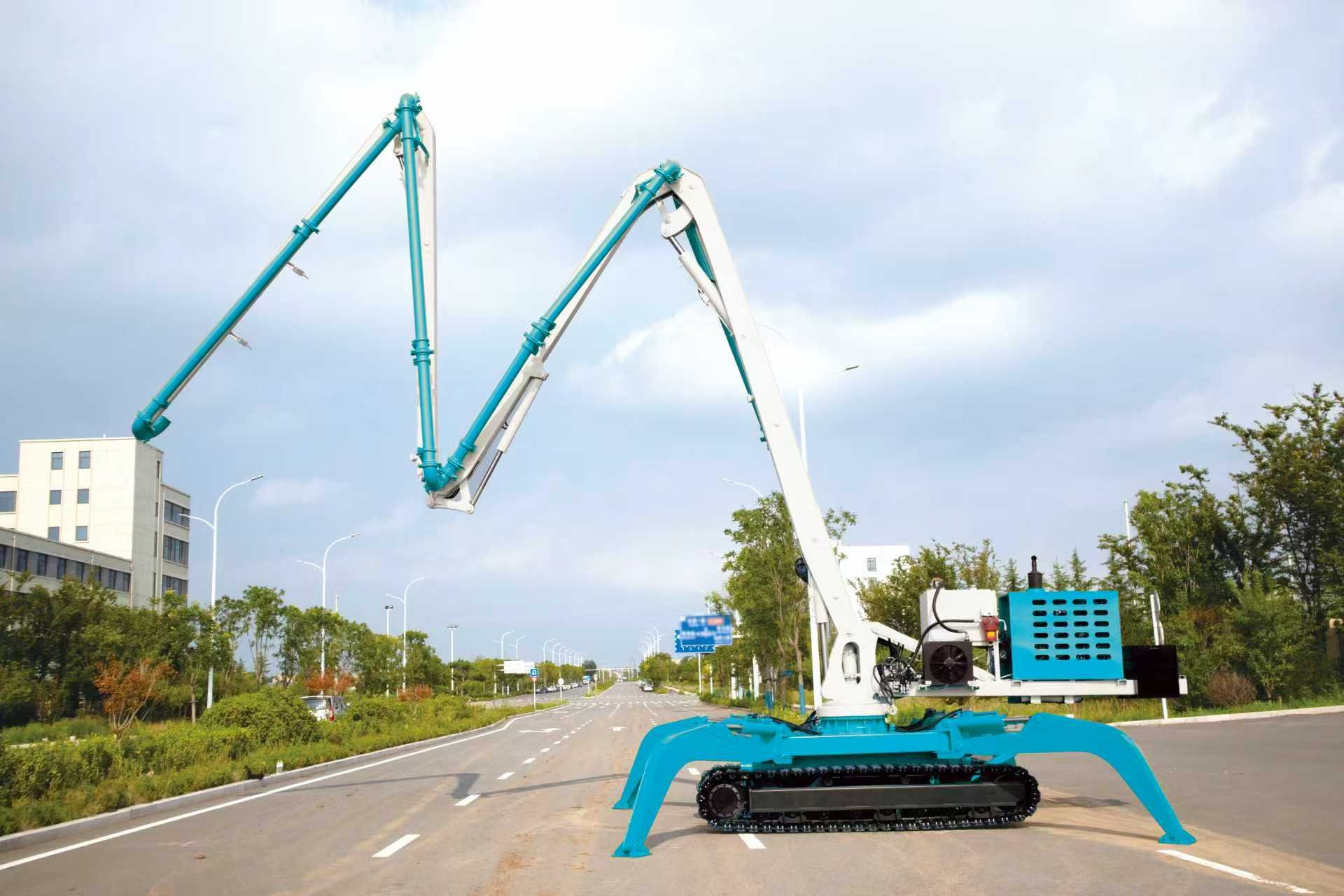

PHOTOS:
Parameter:
HGL20-4M Crawler hydraulic concrete placing boom | |
PERFORMANCE | |
Fabric height | 19.9m |
Rotation angle | 360 ° |
Pitch angle | 0～90 ° |
Slewing brake | Normally Closed |
Working environment temperature | -10℃~45℃ |
Machine weight | 8.6T |
Outrigger span | 4990*4990 |
Overall dimensions (non-working | 9038*2200*2512 |
Delivery pipe cleaning method | Wash/dry clean |
Arm opening method | Four sections M type |
Delivery pipe diameter | Φ 125 |
BOOM | |
End hose | 3m |
Length of each boom section | 5155/4005 /4050/4450 |
Corner | 90/180 /230/195 |
Power Source | diesel engine |
CONTROL SYSTEM | |
power | 65kW |
System pressure | 32MPa |
Control method | Manual/wireless analog control |
Track size | 3500*2100*600 |
WALKING DEVICE | |
Maximum walking speed | 3km/h |
Travel engine | Yuchai/Cummins/ Weichai 60kW-70kW |
