Hetaifeng HG32 is a hydraulic climbing concrete placing boom with a 31.7m placing radius, designed as an ideal supporting equipment for trailer concrete pumps. It adopts fully hydraulic drive, 360° continuous rotation, and reliable safety system.
This self-climbing placing boom can be anchored to the floor and lift automatically; one lift meets concrete placement for two floors. It features compact structure, easy operation, and can be installed on floors or lift shafts. For large-area projects, multiple tower sections can be used to reduce cost.
Equipped with 15KW motor, 31MPa hydraulic system, cable and wireless remote control, it is widely used in high-rise buildings, large commercial complexes and long-cycle construction projects.
Horizontal reach: 28-36m (not Including the end hose), Mode of drive: fully hydraulic;
the climbing type concrete placing boom can be anchored to the floor with Initially prepared holes when working, and it can be lifted itself by its equipped climbing system, one lifting can meet the need of two floors concrete placement.
If the floor area is large, several tower bodies can be installed and move the boom assembly onto relevant tower body to meet the needs of certain area concrete placement and save cost.
Compact structure, easy operation, reliable safety, economical and practical, it can be installed on either floor or lift shaft.

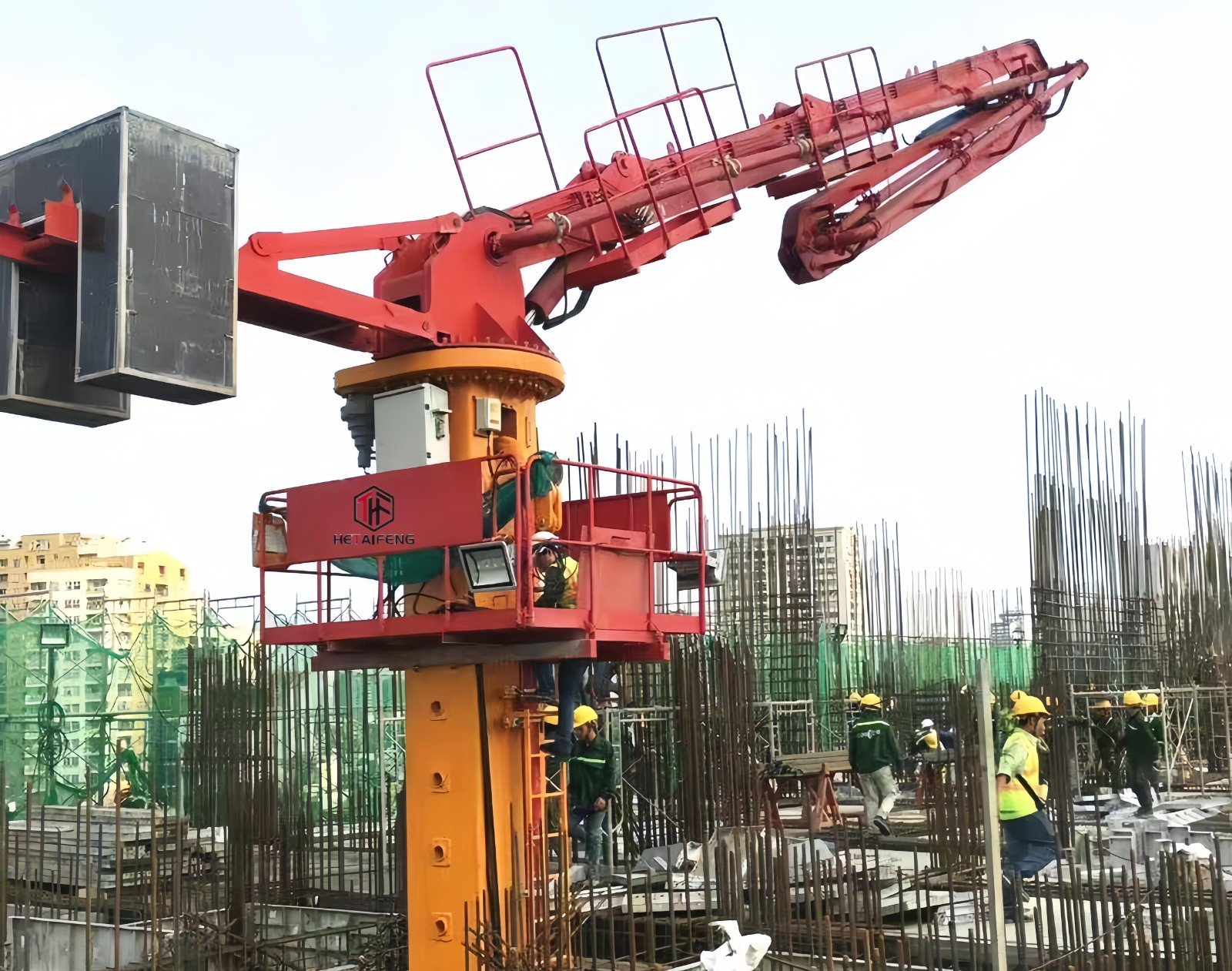

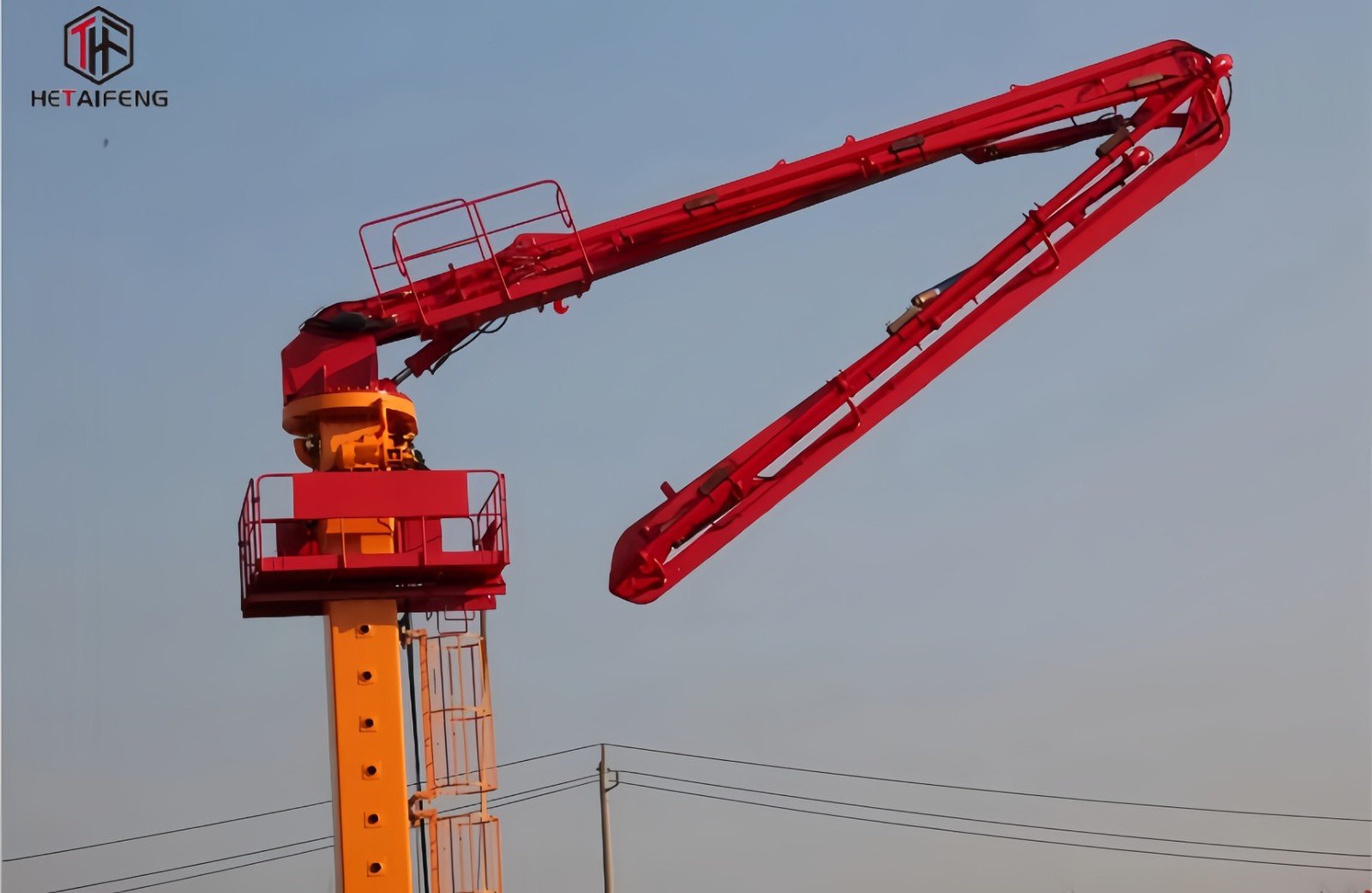

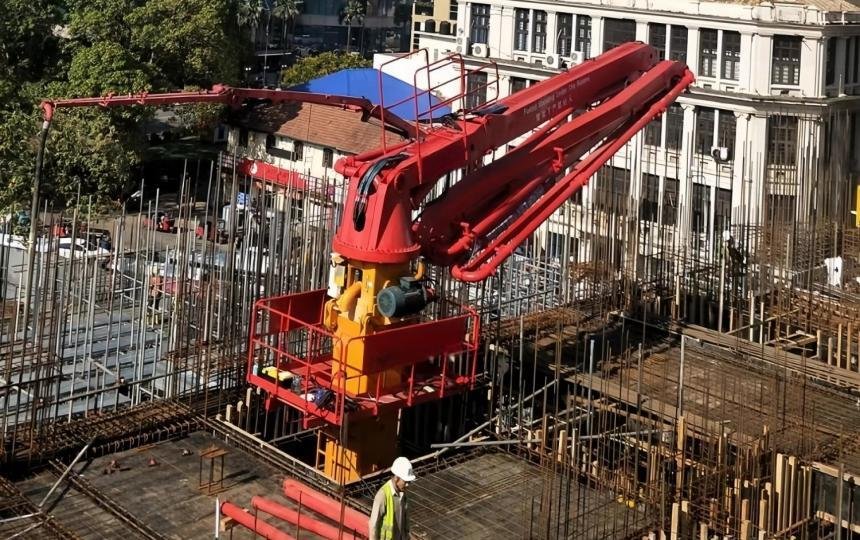

PHOTOS:
Parameter:
item | Unit | HG28 | HG32 | HG33 | HG36 |
Max. Placing Radius | M | 28 | 32 | 33 | 36 |
Free standing height(to the joint between boom end swivel table) | M | 22.7 | 22.7 | 22.7 | 22.7 |
Tower structure type | --- | Tubular Column | Tubular Column | Tubular Column | Tubular Column |
Cross Section of Tubular Column | --- | 0.75X0.75m | 0.75X0.75m | 0.75X0.75m | 0.75X0.75m |
Power Supply | V | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
or Customized | or Customized | or Customized | or Customized | ||
Control Mode | --- | Cable Remote Control | Cable Remote Control | Cable Remote Control | Cable Remote Control |
Radio Remote Control | Radio Remote Control | Radio Remote Control | Radio Remote Control | ||
Mast section | --- | 2pcs, each is 10m | 2pcs, each is 10m | 2pcs, each is 10m | 2pcs, each is 10m |
Jacking lifting cylinder | --- | Included | Included | Included | Included |
Counterweight | --- | Without | With | Without | Without |
