1. Efficiency
2. Flexibility
3. Durability and reliability
4. Adapt to complex environments
Brief Introduction:
Efficiency: Crawler concrete pumps use crawler chassis, which can be quickly moved to the construction site and installed quickly, greatly shortening the preparation time and improving construction efficiency. Its pumping system can efficiently transport concrete to the designated- ed location to meet the needs of large-scale, high-intensity construction.
Flexibility: The crawler chassis design enables concrete pumps to easily cope with various complex terrains, such as mountains, slopes, muddy land, etc., enhancing the flexibility of construction. Some crawler concrete pumps are also equipped with wireless remote control systems, allowing operators to control the movement and pumping of the equipment at a safe distance, further improving the flexibility and safety of construction.
Durability and reliability: Crawler concrete pumps are usually made of high-strength materials, with a sturdy and durable structure that can withstand harsh construction environments and heavy-duty work. Its pumping system and walking mechanism have been carefully designed and rigorously tested to ensure stable and reliable perfor- mance during long-term, high-intensity use.
Adapt to complex environments: Crawler concrete pumps are particularly suitable for construction in complex terrains and harsh environments, such as mountains, slopes, muddy land, etc. These environments pose great challenges to traditional construction equipment, but crawler concrete pumps can easily cope with them.

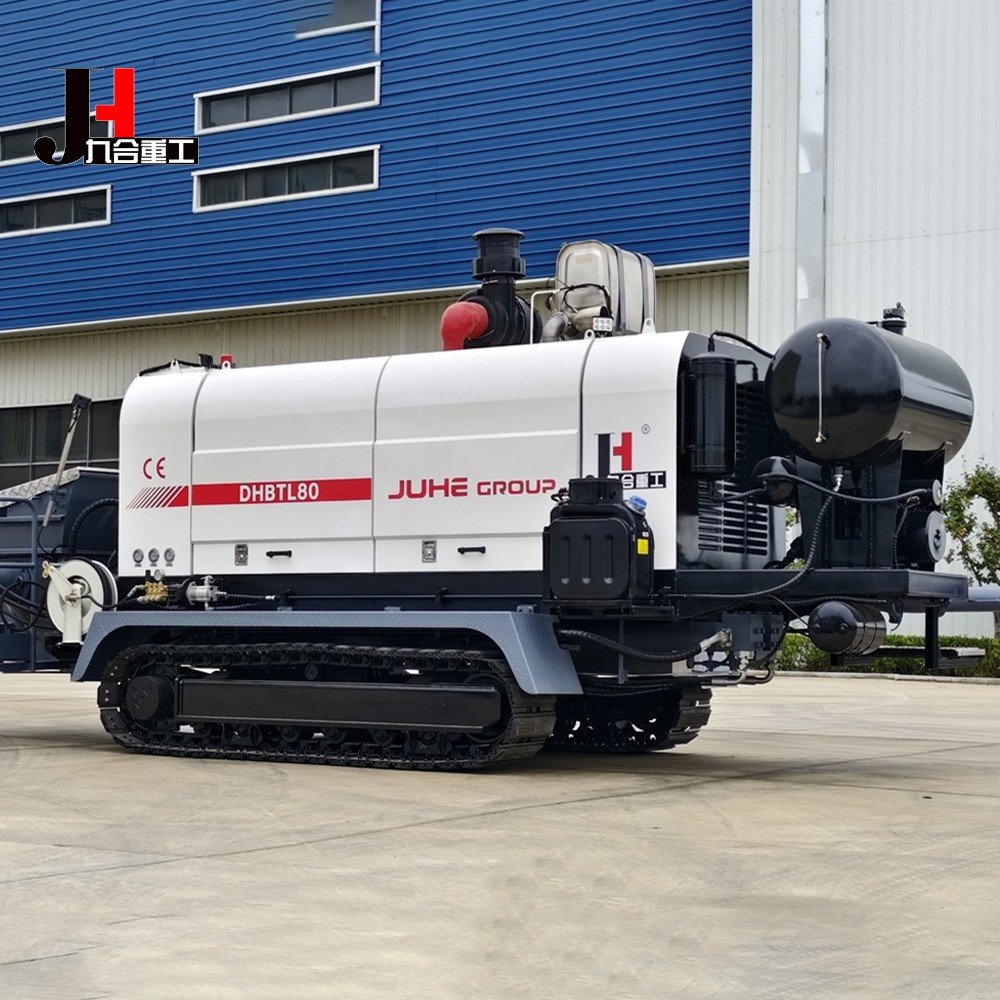

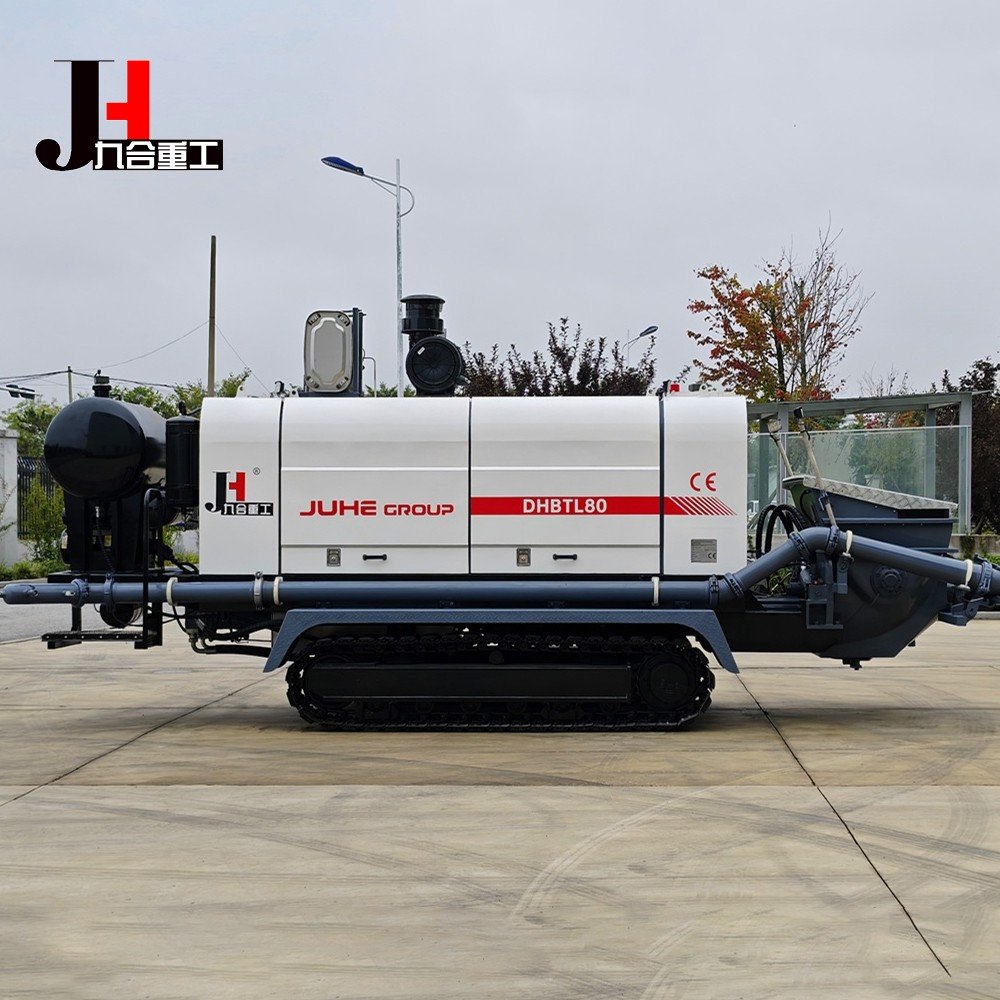

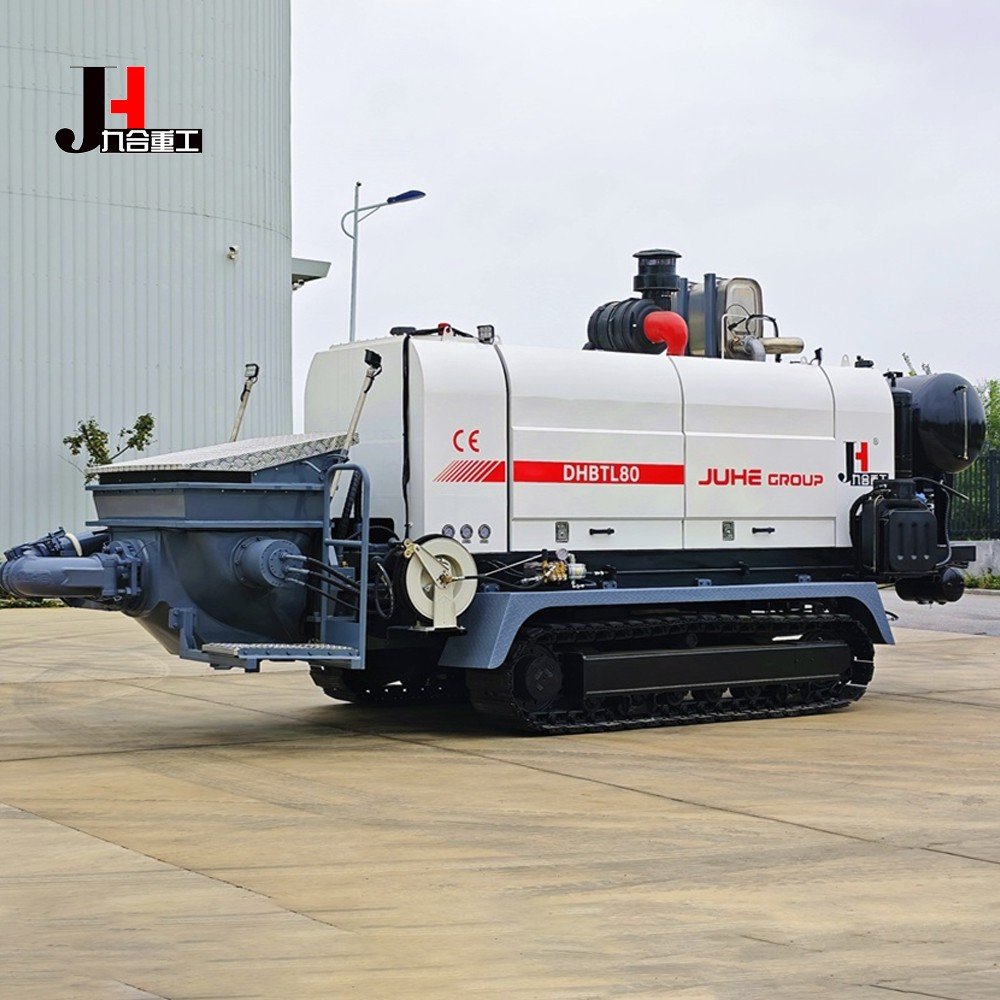

Photos:
Parameter:
| Item | Unit | Parameter | ||
| Pumping System | Max. theoretical delivery volume | M3/h | 60 | 80 |
| Max. theoretical delivery pressure | Mpa | 13 | 13 | |
| Max. delivery frequency | times/min | 20 | 22 | |
| Type of distribution valve | S tube valve | S tube valve | ||
| Specification of delivery cylinder | mm | 200×1650 | 200×1650 | |
| Specification of main cylinder | mm | 125×80×1650 | 125×80×1650 | |
| Volume of gasoline tank | L | 650 | 650 | |
| Hoisting height | mm | 1450 | 1450 | |
| Output opening diameter | mm | 180 | 180 | |
| Inner dia. of delivery pipe | mm | 125 | 125 | |
| Power System | Power of diesel engine | Kw | 132 | 176 |
| Rated rotate speed | r/min | 2000 | 2000 | |
| Idling speed | r/min | 800 | 800 | |
| Voltage of battery cell | V | 24VDC | 24VDC | |
| Fuel Tank | L | 260 | 260 | |
| Hydraulic System | Hydraulic oil circuit type | Open circuit | Open circuit | |
| Max. oil pressure of main system | MPa | 32 | 32 | |
| Max. oil pressure of mixing system | MPa | 16 | 16 | |
| Max. mixing rotate speed | r/min | 42 | 42 | |
| Other Parameters | Concrete slump | mm | 80～200 | 80～200 |
| Allowable max dia. of aggregate | mm | Pebble 50, crushed stone 40 | Pebble 50, crushed stone 40 | |
| Overall Dimension （L×W×H） | mm | 5410×2300×2560 | 5410×2300×2560 | |
| Driving speed | Km/h | ≤5 | ≤5 | |
| Weight | KG | 7420 | 7640 | |
